These pages are not meant to be a guide to capturing and processing astro images, I've written them as my own crib notes because I find it easier to be able to quickly pull up these pages for my own reference when I need something

If you're looking for a good introduction, primer and reference for astrophotography then I would recommend Chris Woodhouse's The Astrophotography Manual

I use PixInsight for image processing, so I'd recommend Warren A Keller's Inside PixInsight and Rogelio Bernal Andreo's Mastering PixInsight for your library. There are of course plenty of internet sources, the PixInsight site has a link to many resources and their ‘PixInsight Ambassadors’ and I often use Kayron Mercieca's Light Vortex Astronomy and Jon Rista's Tutorials

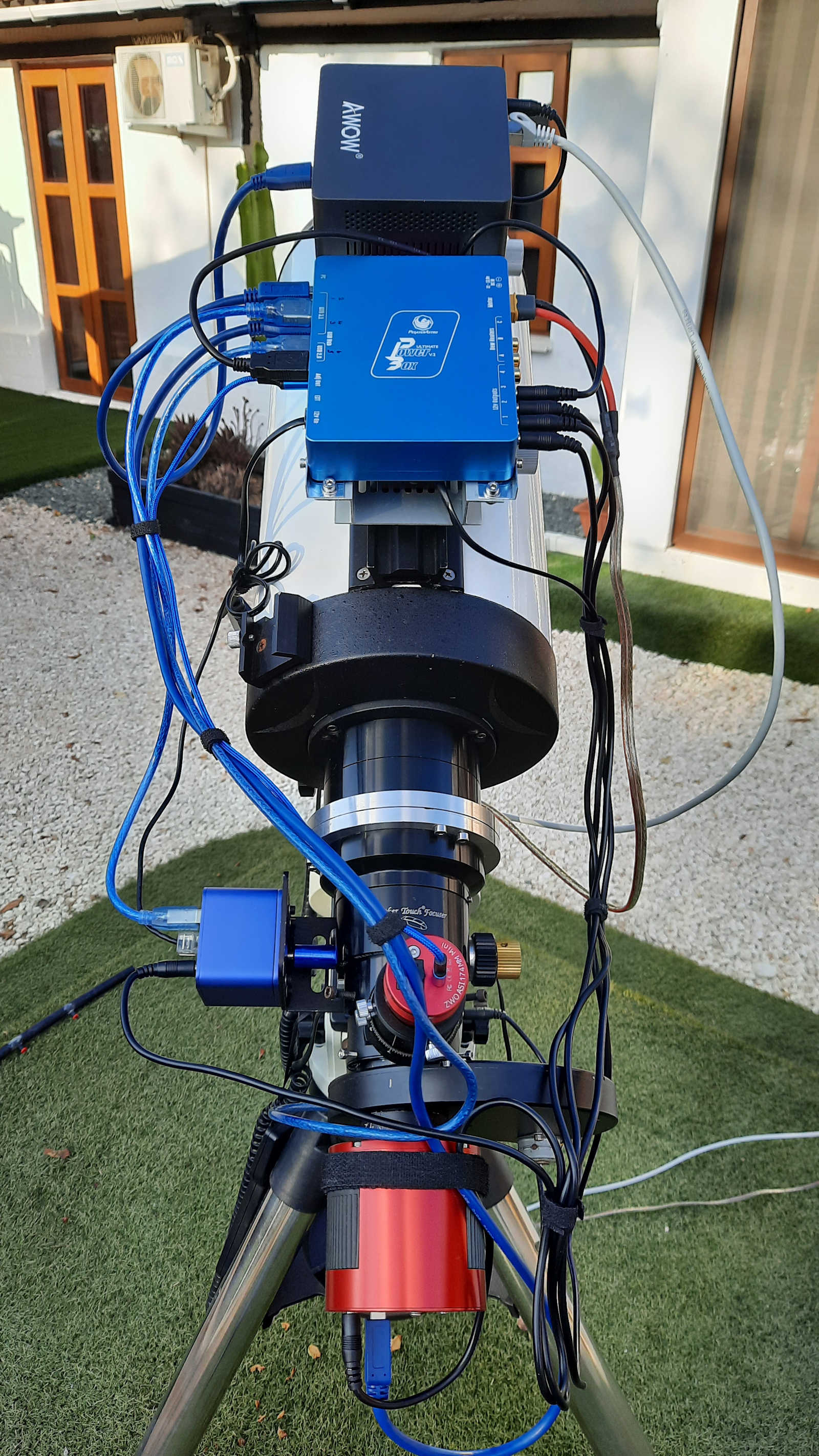

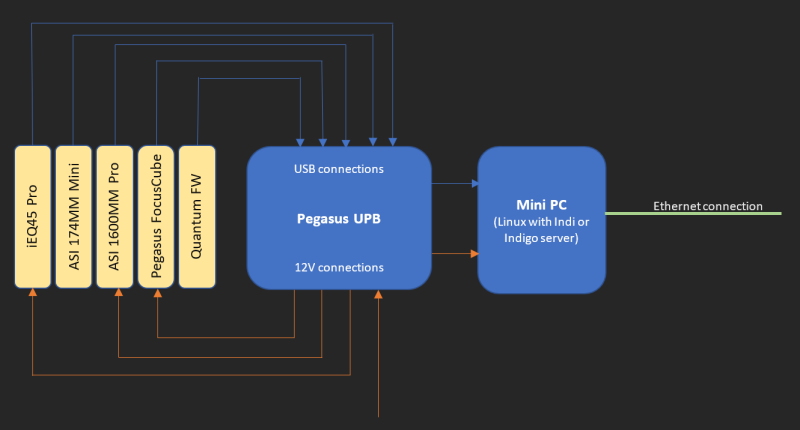

Setup

Hardware
Mount	iOptron iEQ45 Pro
Scope	Altair Astro RC6 (GSO)
Imaging Camera	ASI 1600MM Pro
Guide Camera	ASI 174MM Mini
Focuser	2" Feather Touch Crayford
Focus Motor	Pegasus FocusCube 2
OAG	Omegon Off-Axis Guider with microfocus
Filter Wheel	Brightstar Quantum 7 x 1.25
USB Hub / Power Supply	Pegasus UPB
Controller	AWOW AL34 Micro PC
Software
Server	Indi running on Ubuntu Linux
Sequencing & Guiding	KStars / Ekos on Win 10
Processing	PixInsight
